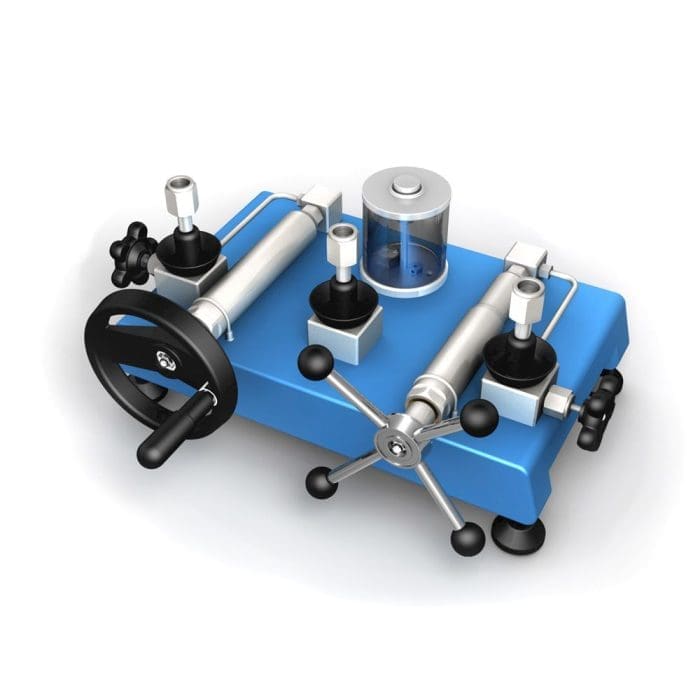

Additel ADT949-AF Hydraulic Pressure Test Generator
$7,273.00 – $8,166.00
Hydraulic Pressure Calibration Generator,..40,000psi, Autoclave F-250-C, 9/16″ -18 UNF female
- Generate 85% vacuum to 40,000 psi (2,800 bar) pressure
- Minimal maintenance
- Easy-to-use
- Hand-tight quick connectors
Description
The 949 Hydraulic Ultra-high Pressure Test Pump is a hand operated pressure pump designed to generate pressure up to 40,000 psi (2,800 bar). With the patented screw press technology, high pressures can be easily generated, increased and decreased smoothly. A specially designed shut-off valve makes the pressure as stable as possible during calibration. With no non-returning valve, the 949 avoids the troublesome leakage issues that is usually experienced with hand pumps and allows for minimal maintenance. The 949 is an ideal comparison test pump for calibrating ultra-high pressure measuring instruments such as test gauges, indicators or transducers in the laboratory.
Additional information
| Weight | 35.2 lbs |
|---|---|
| Dimensions | 20.5 × 14.2 × 9.1 in |
| Select Options | Without Carrying Case, With Carrying Case |
Features
Generate Ultra-high Pressure
Generate pressure up to 40,000 psi (2,800 bar)
Durable and Minimal Maintenance
Patented screw press technology, without nonreturning valve inside that is usually used on
troublesome hand pumps.
Easy-to-use
With the patented screw press technology, high
pressures can be generated easily, as well as
increased and decreased smoothly.
Extremely Low Leakage
Patented screw press technology replaces
troublesome, check valves (non-returning valve) found
in most hand pumps which practically eliminates
leakage.
Specifications
| Specifications | |
|---|---|
| Media | Oil |
| Generated Pressure Range | 85% vacuum to 40,000psi (2,800bar) positive pressure. |
|
Material
|
Ram/adapters: SS |
| Body: SS/aluminum | |
| Seals: Buna-N | |
|
Connection
|
Test Gauge Connection: Positional Autoclave F-250-C, 9/16″ – 18 UNF female |
| Reference Gauge Connection: Positional Autoclave F-250-C, 9/16″ – 18 UNF female | |
| 1/2BSP female and M20X1.5 female connections are available upon request. | |
|
Dimensions
|
Height: 9.1″ (230 mm) |
| Base: 20.5″ (520 mm) x 14.2″ (360mm). | |
| Weight | 35.2 lb (16 kg). |
| Warranty | 1 year |
