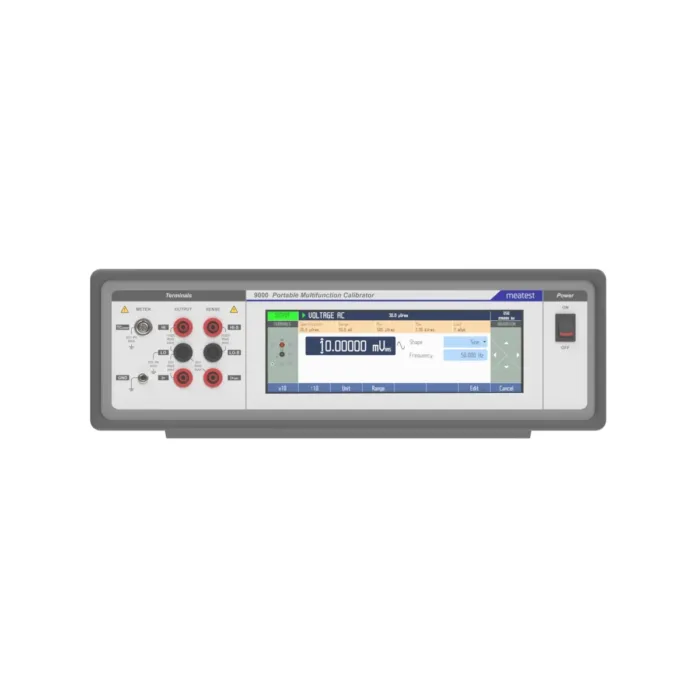

9000 Portable Multifunction Calibrator
65 ppm AC/DC multifunction calibrator designed specifically for calibration of 3½ and 4½ digit multimeters. 1050 V, 20.5 A, resistance, capacitance and temperature packed inside ultra portable, 11 kg body.
- Compact, light, ideal for onsite calibrations
- 1050 V, 20.5 A, resistance, capacitance, TC, RTD and frequency
- Basic accuracy 60 ppm
- All-round calibrator for 3.5 and 4.5 digit multimeters
Description
9000 Portable Multifunction Calibrator is designed specifically for calibration of 3½ and 4½ digit multimeters. Advancing from M143 predecessor, the 9000 comes with much wider frequency ranges, capacitance function and stronger outputs to cover modern day handheld workload, including LoZ function calibration, panel meters, process meters and more.
User comfort
The 9000 is the same size as a briefcase and weighs just 11 kg so it’s ideal for onsite calibrations. Large control zones of 8” touchscreen display are forgiving to inaccurate inputs and well-thought-out touch control design make the 9000 easy for operators to work with.
Automation-ready
USB, Ethernet and IEEE488 interfaces enable remote control and automation in calibration labs as well as industrial test rigs. The 9000 is fully compatible with Meatest calibration SW package CALIBER/WinQBase, including CamOCR Camera Readout Module which makes handheld multimeter calibration incredibly effective.
Specifications
DC voltage | 0 – 1050 V ± 60 ppm / year |
AC voltage | 1 mV – 1050 V, 10 Hz – 100 kHz sinusoidal & non-sinusoidal waveforms ± 500 ppm / year |
DC current | 0 – 20.5 A ± 150 ppm / year |
AC current | 0 uA – 20.5 A, 10 Hz – 20 kHz sinusoidal & non-sinusoidal waveforms ± 700 ppm / year |
Resistance | 0 Ω – 600 MΩ ± 50 ppm / year |
Capacitance | 1 nF – 120 mF ± 0.25 % / year |
Temperature | TC BCDEG2JKMNRST with cold junction compensation RTD ± 0.1°C / year |
Frequency | 0.1 Hz – 20 MHz ± 5 ppm / year |
